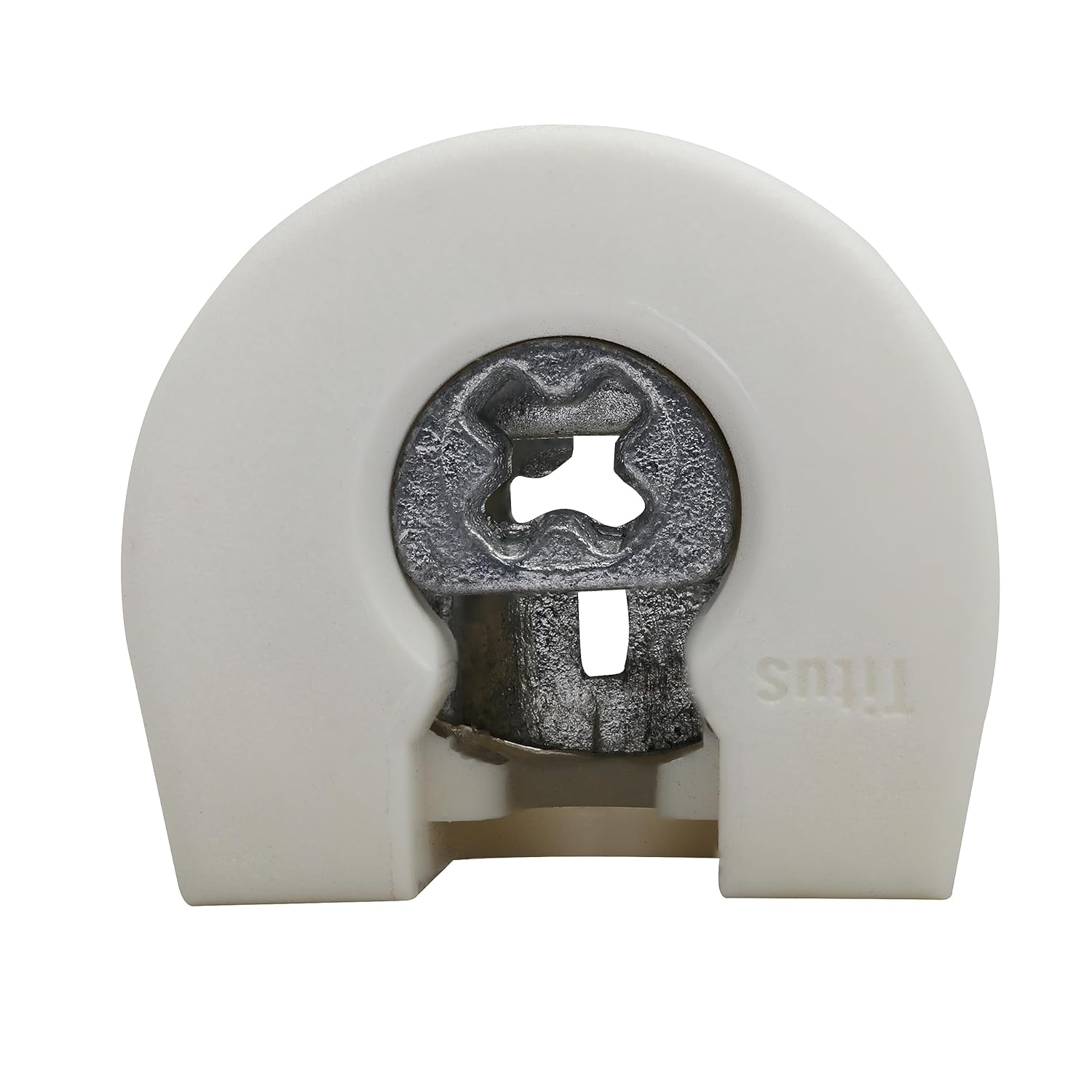

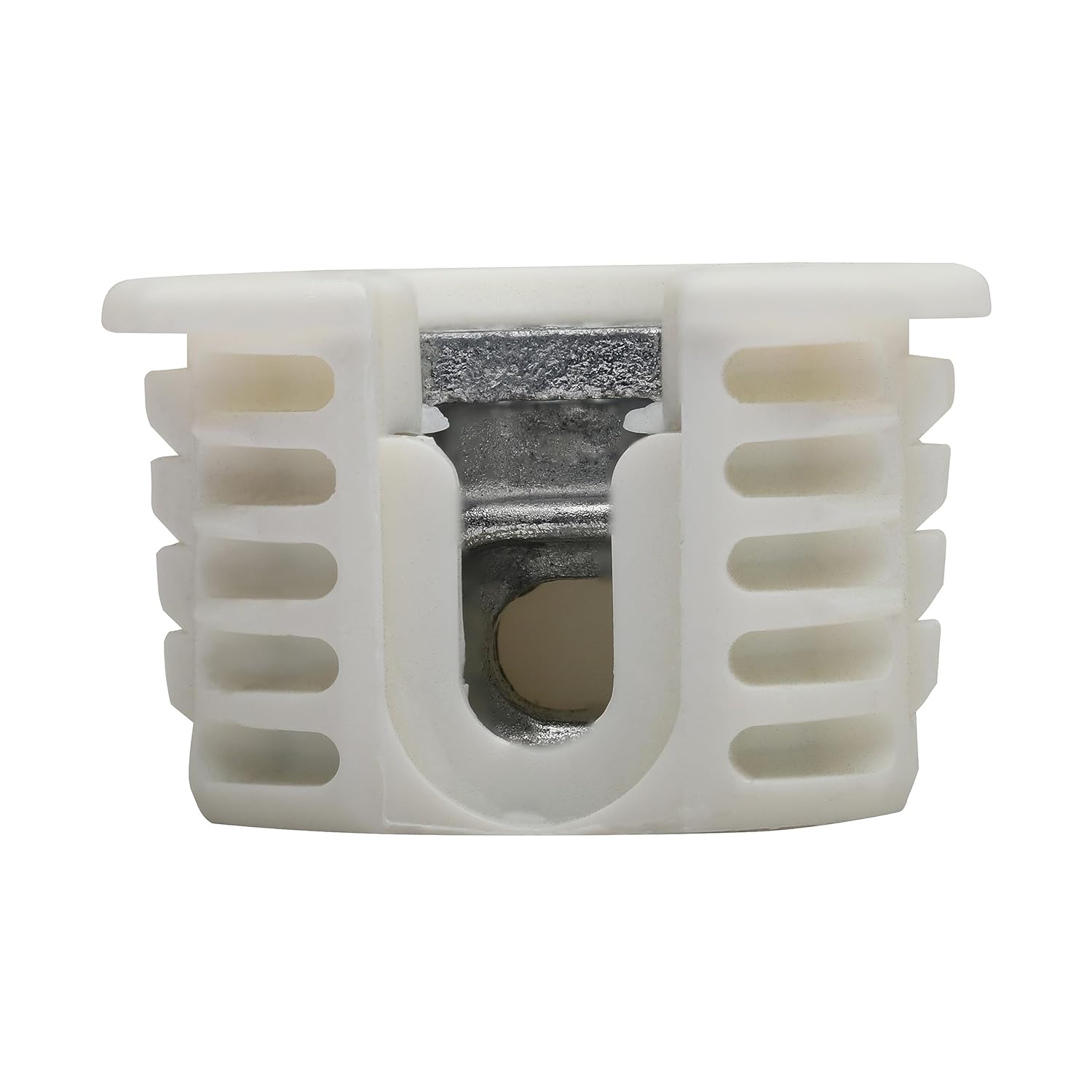

25 Pack Titus System 6 Cam Connector for 19mm Panel, with Ridge (Drop-in), Cam Lock Nut Furniture Fastener, Furniture Connecting Cam Fittings in White Finish, Non-Outrigger, R011WHT

Titus System 6 Cam Connector for 19mm Panel, with Ridge (Drop-In), Furniture Connecting Cam Fittings in variations of either White, Gray, Black, Brown, Almond, or Silver Finish, Non-Outrigger is ideal for use in high volume production of cabinet, bookcases, dresser, and drawer storage systems because no edge boring is required. An excellent choice for manufacturing environments and DIY projects with limited drilling capacity. Compatible with all Titus System 6 Quick Fitting Dowels. It provides a strong vibration-proof connection suitable for earthquake-prone communities. PRODUCT DETAILS: Cam Width: 7/8" (22mm) Drilling depth 9/16" (14mm) For 3/4" (19mm) Panel Thickness Easy-to-use connectors Drop-in, insert by hand Durable cams Housing material is plastic with zinc cams Color Variation Finish: White, Gray, Black, Brown, Almond, or Silver Non-Outrigger Version: Engineered to fit slightly tighter in the 20mm hole for reduced panel shift when tightening the Cam. (Search: R014Z or R012Z for the Screw-in Dowel Furniture Connector)

• APPLICATION: Titus System 6 Cam Lock Fittings are ideal for use in high-volume production of cabinet, bookcase, dresser, and drawer storage systems because no edge boring is required. Excellent choice for manufacturing environments and DIY projects with limited drilling capacity.
• 4-STEP ASSEMBLY: Fast and easy furniture cam locks drop-in shelf panel insertion guide- Press the housing into the face board, then press the dowel into the side panel. Assemble the panels, then finally tighten the joint and you're all set!
• ANGLE DRIVE: This is a feature on the furniture fastener cam lock that allows for the angled position of the screwdriver with the locking action creating a tight and secure joint. Cam Width: 7/8" (22mm) & Drilling depth 9/16" (14mm) for 3/4" (19mm) Panel Thickness
• ROCK STEADY: This joint connector nut is compatible with all Titus System 6 Quick Fitting Dowels. It provides a strong vibration-proof connection, suitable for earthquake-prone communities.
• COMPONENTS: These drawer fastener cam lock nuts are encased in housings made from high-grade plastic with zinc cams. Guaranteed outstanding service performance. (Search: R014Z or R012Z for the Screw-in Dowel Furniture Connector)
